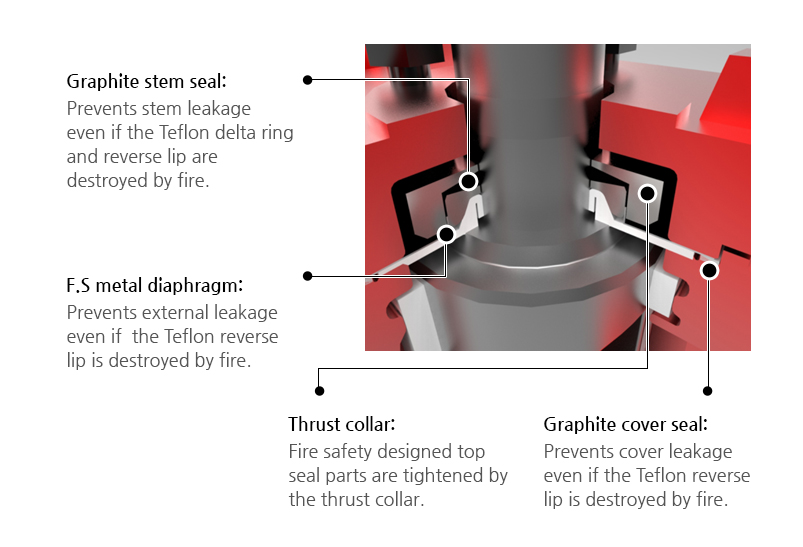

Fire safety top seal is designed with the purpose of preventing external leakage. A graphite stem seal, flexible graphite cover seal and F.S metal diaphragm all prevent external leakage from fire.

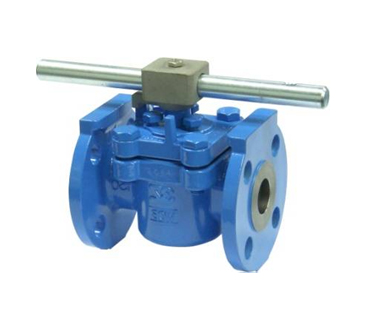

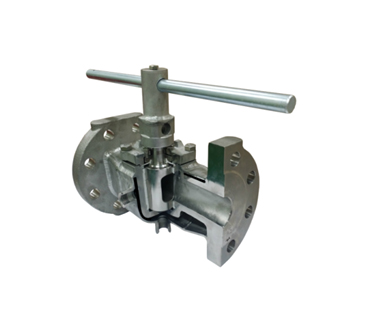

Sleeved plug valve with Wrench

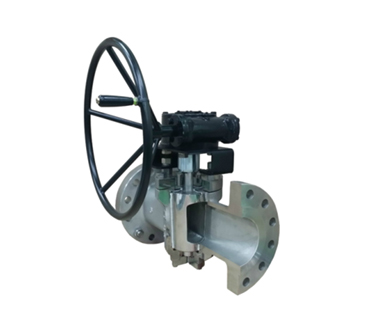

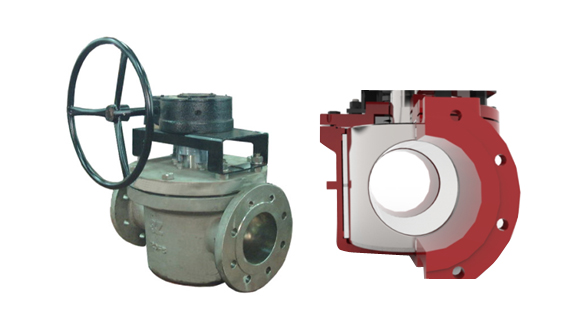

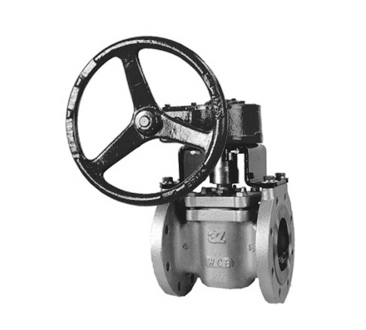

Sleeved plug valve with gear box

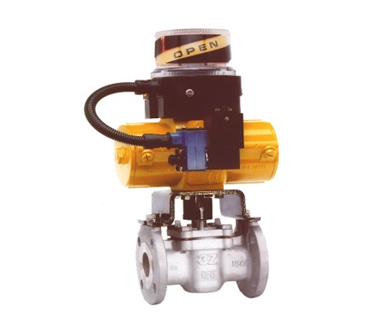

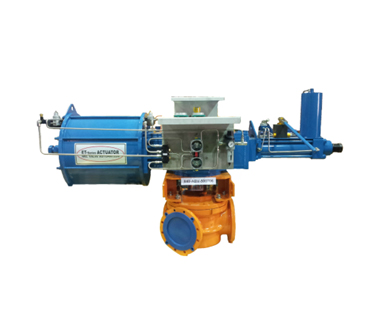

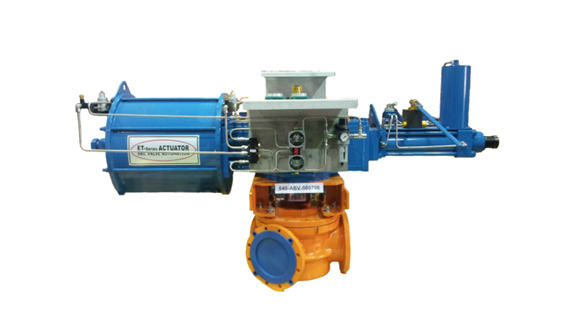

valve with pneumatic actuator
Full port sleeved plug valve

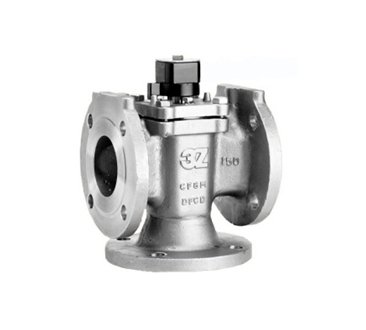

3way port sleeved plug valve
3way side port sleeved plug valve
Jacketed sleeved plug valve
Live loaded sleeved plug valve
High pressure sleeved plug valve
Nuclear sleeved plug valve
Caged sleeved plug valve
Severe service sleeved plug valve
Multiport valves are used in purpose of blending, diverting and segregation. It is more economical to use only one piece of 3-way valve instead of three pieces of 2-way valves. Multiport valves make piping simple and minimal.
There is no diminished flow with the full bore port, and also easy to pigging. For application such as high viscosity condensable media, high efficiency is demonstrated with full bore port.
3Z steam jacketed plug valves are designed to control special chemical service where media has to be required within a specific temperature range. The steam jacketed design prevents the media in the body from cooling down. If cool media become solid, the trim parts, plug and stem will be very hard to operate. The steam jacket keep maintaining required temperature of the valve.
Designed for nuclear power plant application. Standard Sleeve material is “UHMWPE”
- Port: 2-3 way
- Class: 150/300/600
- Size: 0.5“ - 6”
- Temperature Range: -29℃ ~ 100℃
Enhance stem sealing against external leakage by using live loaded disk spring and fugitive emission packing, and Live loaded plug valve is certified by ISO-15848(Industrial valves-Measurement, test and qualification procedures for fugitive Emissions)
3Z high pressure plug valves are designed for requirements of ASME B16.34 Class 600 and especially for 4” and over sized valves with top and bottom trunnion design. They securely operate against high differential pressure without excessive sleeve compression. 3Z high pressure plug valves are available in Reverse Osmosis (RO) Service.
3Z caged plug valves are designed for the requirements in throttling application and high pressure drops service. The cage fixed in the body protects sleeve from erosion during valve operation from open to close.
3Z severe service plug valves are designed for maximum performance of external sealing . Especially the lantern ring between the top packing and the bottom packing provides an effective way to control the amount of stress in the packing set against packing wear and stem leakage.
